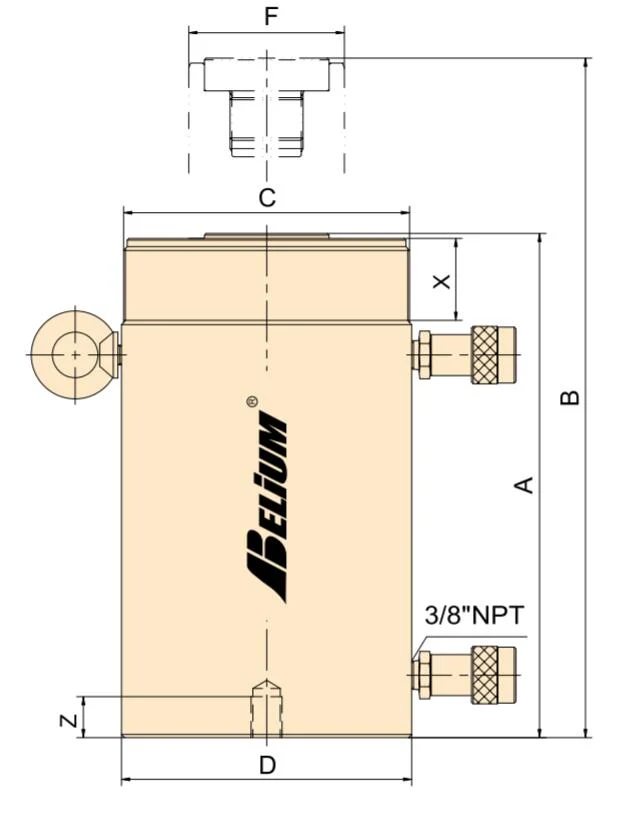

BMD Series
Double Acting General Purpose Cylinders
Capacity | 10-300T |
|---|---|
Max. Pressure | 700 Bar Hydraulic Return |
Overview
Capacity: 10-300T Max. Pressure: 700 Bar Hydraulic Return
All BMD-Series cylinders can be used in high working
cycle applications and are perfect for bridge lifting,
hydraulic presses, and construction and maintenance
applications. Cylinder body mounting threads and base
mounting holes on most models allow greater mounting
flexibility. All cylinders have a hard chrome piston rod,
bronze overlay on the piston bearing area and retract
side safety pressure relief valves to ensure long term,
trouble free performance
- Hardened alloy steel guide ring elimates
over travel and provides support to reduce
wear from off center loads - Industrial U-cup style seal prevents costly
leaks - Standard coupler provided with dust cover
- High strength alloy steel body
is precision machined to reduce
wear and features a baked enamel
finish for durability and corrosion
protection - Industrial U-cup style seal prevents
costly leaks - Hardened and chromed piston reduces
wear and corrosion - High strength composite bearing
provides support for off center loads
without damaging the cylinder walls
Optional Saddles
Saddle Model | Number Cylinder Model Number |
|---|---|
ST-50 | BMD-308, 3014 |
ST-100 | ST-100 BMD-506, 5013, 5020, 756, 7513 |
