BMDX Series

Double Acting High Tonnage Cylinders

Price on request

Product inquiry

Find the right solutionTalk to a Specialist

Capacity	50-1000T
Max. Pressure	700 Bar Hydraulic Return

Overview

Capacity: 50-1000T Max. Pressure: 700 Bar Hydraulic Return

The BMDX double acting high tonnage industrial
cylinders is specifically designed for lifting and
maintenance applications. All models are supplied
with a tilting saddle to reduce the risk of damage
caused by side loading and an integral stop ring
for stroke limitation is fitted as standard. Standard
range models are featured in this catalogue,
however additional capacities and stroke options are
available on request.

Hardened and chromed piston reduces wear
and corrosion
Industrial U-cup style seal prevents costly leaks
Standard coupler provided with dust cover
Stop ring withstands full dead end
loading
Safety valve release pressure when the
cylinder is overload
High strength alloy steel body is precision
machined to reduce wear and features
a baked enamel finish for durability and
corrosion protection

Features of BMDX SERIES DOUBLE ACTING HIGH TONNAGE CYLINDER

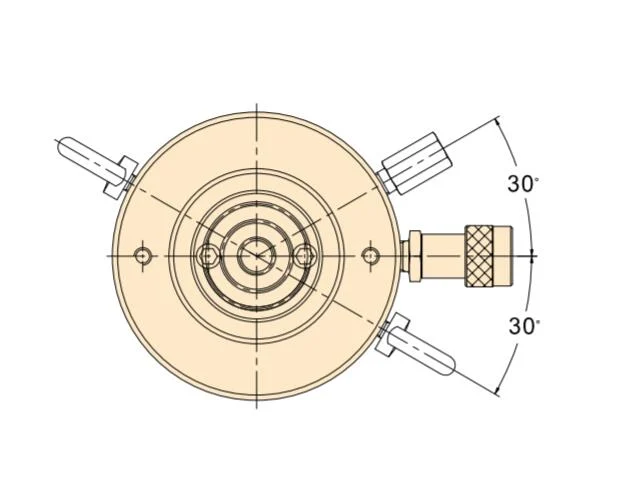

Design of BMDX SERIES DOUBLE ACTING HIGH TONNAGE CYLINDER

Optional Saddles

Cylinder Model	Saddle Model	Saddle Size
		A	B	C	D	E
		mm	mm	mm	mm	mm
BMSX-50T/BMDX-50T	STX-50	49	24	43	39	49
BMSX-100T/BMDX-100T	STX-100	73	29	48	55	74
BMSX-150T/BMDX-150T	STX-150	91	31	50	74	94
BMSX-200T/BMDX-200T	STX-200	118	35	59	90	113
BMSX-250T/BMDX-250T	STX-250	144	46	70	120	145
BMSX-300T/BMDX-300T	STX-300	158	62	81	150	177
BMSX-400T/BMDX-400T	STX-400	193	51	78	170	196
BMSX-500T/BMDX-500T	STX-500	228	63	90	200	228
BMSX-600T/BMDX-600T	STX-600	241	76	103	220	247
BMSX-800T/BMDX-800T	STX-800	297	75	102	260	297
BMSX-1000T/BMDX-1000T	STX-1000	311	93	120	295	323

Series Comparison

Series Comparison
MODEL	CYLINDER CAPACITY @ 10,000 PSI (700 BAR)	STROKE	MAX. CYLINDER CAPACITY		CYLINDER EFFECTIVE AREA		OIL CAPACITY		COLLAPSED HEIGHT	EXTENDED HEIGHT	OUTSIDE DIAMETER	PISTON DIAMETER	WEIGHT
			ADVANCE	RETRACT	ADVANCE	RETRACT	ADVANCE	RETRACT	COLLAPSED HEIGHT	EXTENDED HEIGHT	OUTSIDE DIAMETER	PISTON DIAMETER
			ADVANCE	RETRACT	ADVANCE	RETRACT	ADVANCE	RETRACT	A	B	D	F
	METRIC TON (US TON)	IN	Metric Ton	Metric Ton	CM²	CM²	CM³	CM³	MM	MM	MM	MM	KG
BMDX-502	50 (55)	50.00	53	26	75.40	36.90	377	185	162.00	212.00	129.00	70.00	17.00
BMDX-504		100.00			75.40	36.90	754	369	212.00	312.00	129.00	70.00	19.50
BMDX-506		150.00			75.40	36.90	1,131	554	262.00	412.00	129.00	70.00	22.00
BMDX-508		200.00			75.40	36.90	1,508	738	312.00	512.00	129.00	70.00	25.50
BMDX-5010		250.00			75.40	36.90	1,885	923	362.00	612.00	129.00	70.00	29.00
BMDX-5012		300.00			75.40	36.90	2,262	1,107	412.00	712.00	129.00	70.00	31.50
BMDX-1002	100 (105)	50.00	93	43	132.70	61.90	664	309	179.00	229.00	165.00	95.00	29.00
BMDX-1004		100.00			132.70	61.90	1,327	619	229.00	329.00	165.00	95.00	34.00
BMDX-1006		150.00			132.70	61.90	1,991	928	279.00	429.00	165.00	95.00	40.00
BMDX-1008		200.00			132.70	61.90	2,655	1,237	329.00	529.00	165.00	95.00	46.00
BMDX-10010		250.00			132.70	61.90	3,318	1,546	379.00	629.00	165.00	95.00	53.00
BMDX-10012		300.00			132.70	61.90	3,982	1,856	429.00	729.00	165.00	95.00	79.00
BMDX-1502	150 (155)	50.00	140	68	201.00	97.10	1,005	486	196.00	246.00	205.00	115.00	39.00
BMDX-1504		100.00			201.00	97.10	2,010	971	246.00	346.00	205.00	115.00	52.00
BMDX-1506		150.00			201.00	97.10	3,015	1,457	296.00	446.00	205.00	115.00	65.00
BMDX-1508		200.00			201.00	97.10	4,020	1,942	346.00	546.00	205.00	115.00	78.00
BMDX-15010		250.00			201.00	97.10	5,025	2,428	396.00	646.00	205.00	115.00	92.00
BMDX-15012		300.00			201.00	97.10	6,030	2,913	446.00	764.00	205.00	115.00	105.00
BMDX-2002	200 (220)	50.00	185	88	268.70	125.60	1,344	628	212.00	262.00	235.00	135.00	55.00
BMDX-2006		150.00			268.70	125.60	4,031	1,884	312.00	462.00	235.00	135.00	91.00
BMDX-20012		300.00			268.70	125.60	8,061.00	3,768.00	462.00	762.00	235.00	135.00	146.00
BMDX-2502	250 (275)	50.00	254	105	362.90	149.20	1,815.00	736.00	235.00	285.00	275.00	165.00	89.00
BMDX-2506		150.00			362.90	149.20	5,444.00	2,289.00	335.00	485.00	275.00	165.00	136.00
BMDX-25012		300.00			362.90	149.20	10,887.00	4,578.00	485.00	785.00	275.00	165.00	207.00
BMDX-3002	300 (330)	50.00	316	108	452.20	153.70	2,261.00	769.00	322.00	372.00	310.00	200.00	184.00
BMDX-3006		150.00			452.20	153.70	6,783.00	2,306.00	422.00	572.00	310.00	200.00	232.00
BMDX-30012		300.00			452.20	153.70	13,566.00	4,611.00	572.00	872.00	310.00	200.00	303.00
BMDX-4002	400 (440)	50.00	386	132	572.00	188.40	2,860.00	1,055.00	374.00	424.00	350.00	215.00	270.00
BMDX-4006		150.00			572.00	188.40	7,580.00	3,165.00	474.00	642.00	350.00	215.00	330.00
BMDX-40012		300.00			572.00	188.40	15,160.00	6,330.00	624.00	924.00	350.00	215.00	421.00
BMDX-5002	500 (550)	50.00	511	168	730.20	239.60	3,651.00	1,198.00	419.00	469.00	400.00	250.00	410.00
BMDX-5006		150.00			730.20	239.60	10,953.00	3,594.00	519.00	669.00	400.00	250.00	480.00
BMDX-50012		300.00			730.20	239.60	21,906.00	7,188.00	669.00	969.00	400.00	250.00	559.00
BMDX-6002	600 (660)	50.00	599	213	854.90	303.60	4,275.00	1,518.00	429.00	479.00	430.00	265.00	474.00
BMDX-6006		150.00			854.90	303.60	12,824.00	4,554.00	529.00	679.00	430.00	265.00	565.00
BMDX-60012		300.00			854.90	303.60	25,647.00	9,108.00	679.00	979.00	430.00	265.00	710.00
BMDX-8002	800 (880)	50.00	815	252	1,163.60	384.70	5,818.00	1,924.00	484.00	534.00	505.00	320.00	741.00
BMDX-8006		150.00			1,163.60	384.70	17,454.00	5,771.00	584.00	734.00	505.00	320.00	868.00
BMDX-80012		300.00			1,163.60	384.70	34,908.00	11,541.00	734.00	1,034.00	505.00	320.00	1,058.00
BMDX-10002	1000 (1100)	50.00	1017	362	1,451.50	517.10	7,258.00	2,586.00	564.00	614.00	560.00	345.00	1,062.00
BMDX-10006		150.00			1,451.50	517.10	21,773.00	7,757.00	664.00	814.00	560.00	345.00	1,213.00
BMDX-100012		300.00			1,451.10	517.10	43,545.00	15,513.00	814.00	1,114.00	560.00	345.00	1,439.00
