Electric Torque Pumps

Electric Torque Pumps

Price on request

Product inquiry
Find the right solutionTalk to a Specialist

Request a Quote

Security verification will load when this form is visible.

Send your requirements directly to our team.

Overview

BETW-200 ELECTRIC TORQUE WRENCH PUMP

FEATURES AND BENEFITS:

  1. Three stages to release high efficiency of work
  2. Drive 2 or 4 wrenches
  3. Aluminum alloy reservoir for easy moving
  4. Cooling fan for continuous work
  5. Motor of different voltage available
  6. Compact Design to minimize weight
  7. HAWE solenoid valve control
  8. Pressure regulating valve for easy
    adjust system pressure
  9. Can be replaced by 4 tools block
  10. Remote control cable can be customerized.
    Standard one is 6 meters long
  11. With oil cooler for long time working
    without high oil temperature
  12. Alumnum frame, convenient for handling
    and protecting the pump body
  13. Level gauge for supervision oil level in
    the tank
Features of BETW-200 ELECTRIC TORQUE WRENCH PUMP
Parameter of ELECTRIC TORQUE WRENCH PUMP

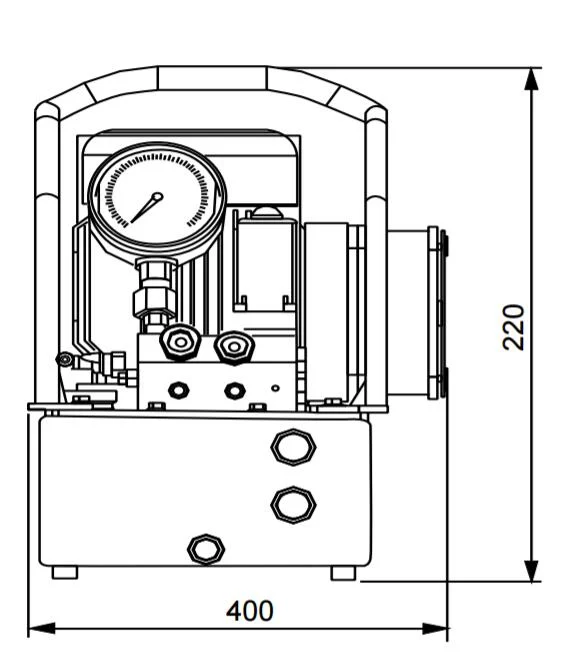

Design of ELECTRIC TORQUE WRENCH PUMP
Design of ELECTRIC TORQUE WRENCH PUMP

BETW-200A ELECTRIC TORQUE WRENCH PUMP

FEATURES AND BENEFITS:

  1. Three stages to release high efficiency of work
  2. Drive 2 or 4 wrenches
  3. Aluminum alloy reservoir for easy moving
  4. Cooling fan for continuous work
  5. Motor of different voltage available
  6. Remote control cable can be
    customerized. Standard one is 6
    meters long
  7. Compact Design to minimize weight
  8. Pressure regulating valve for easy
    adjust system pressure
  9. Alumnum frame, convenient for
    handling and protecting the pump body
  10. HAWE solenoid valve control
  11. With oil cooler for long time working
    without high oil temperature
  12. Level gauge for supervision oil level in
    the tank

BME-204 ELECTRIC TORQUE WRENCH PUMP

FEATURES AND BENEFITS:

  1. Selection of standard slide valve, for a smooth, good
    versatility
  2. Two-stage pressure flow design, the two output flow
    automatically switch
  3. The pump station is made of aluminum titanium alloy,
    light weight, easy to carry
  4. No carbon brush high-power motor, easy maintenance,
    long life
  5. High-performance radiator, the fan up to 35 ℃ when the
    fan automatically start to ensure long uninterrupted work
  6. Electronic control box with integrated circuits, can be
    used for hydraulic cylinders, wrenches, hydraulic clamp
    and other hydraulic equipment.
