BHW Series
Low Profile Hydraulic Wrenches
Overview

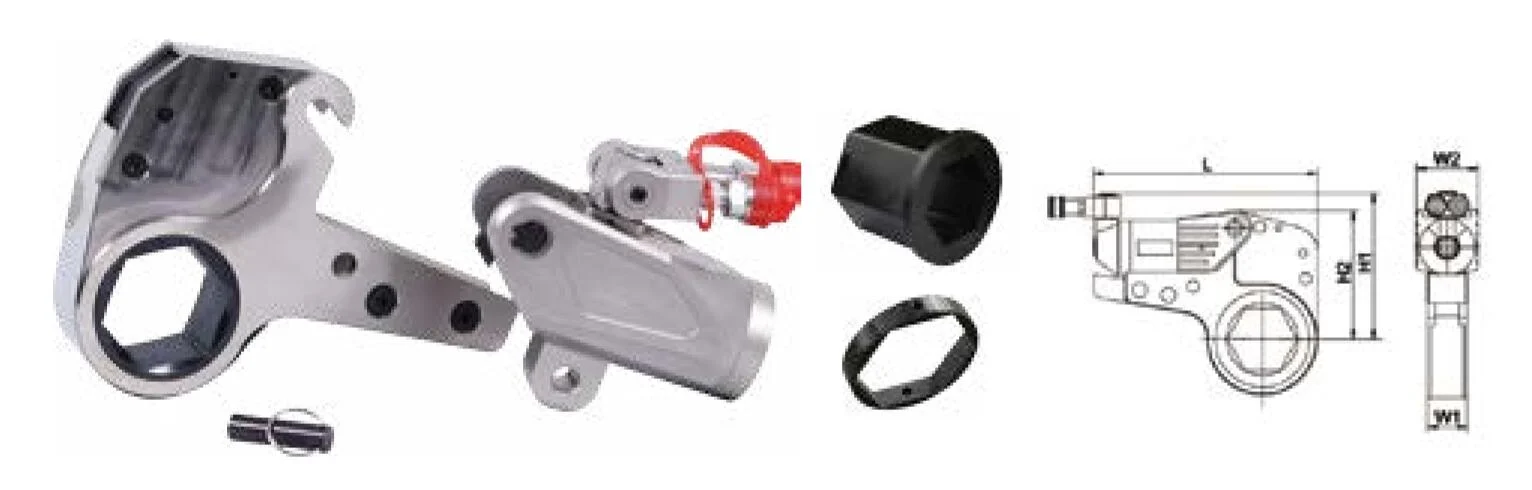

The BHW low profile torque wrench is an essential tool for limited clearance applications. It supports extensive range of
interchangeable ratchet cassettes that deliver a torque range of 232-44593 N.M
- Using High-tech aerospace
mateiral, integrally molded body.
Strengthen the body for using
durability - Wide range of metric and imperial
interchangeable hexagon retchet
cassettes available - Swiveling inlet port Rotates 360
degrees - Laser engrave
- designing using 3D CAD
modeling software, provide torque
precision within ±3%
Cassettes
Model | Torque Range | Bolt/Nut Range | Power Unit WT. | Cassette WT. | L | H1 | H2 | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|
N.m | s | kg | kg | mm | mm | mm | mm | mm | |
BHW2 | 228-2278 | 19-55 | 0.9 | 1.5 | 196 | 126 | 102 | 32 | 51 |
BHW2 | 228-2278 | 60 | 0.9 | 1.5 | 196 | 129 | 105 | 32 | 51 |
BHW4 | 586-5862 | 34-65 | 1.7 | 3.4 | 258 | 163 | 136 | 42 | 66 |
BHW4 | 586-5862 | 70-80 | 1.7 | 3.4 | 263 | 173 | 146 | 42 | 66 |
BHW8 | 1094-109 | 41-95 | 3 | 6.3 | 300 | 192 | 168 | 53 | 83 |
BHW8 | 1094-109 | 100-105 | 3 | 6.3 | 311 | 201 | 177 | 53 | 83 |
BHW14 | 1826-182 | 50-117 | 4.6 | 11.4 | 360 | 225 | 204 | 64 | 99 |
BHW30 | 4231-423 | 110-155 | 10.4 | 20.5 | 430 | 303 | 272 | 85 | 131 |
BHW30 | 4231-423 | 160-175 | 10.4 | 20.5 | 441 | 315 | 285 | 85 | 131 |
