BP Series

Manual Pumps

Price on request

Product inquiry

Find the right solutionTalk to a Specialist

Oil Capacity	900-2300 ml
Max. Pressure	700 Bar(Single)

Overview

Overview

Oil Capacity: 900-2300 ml Max. Pressure: 700 Bar(Single)

Oil Capacity: 4500-7500 ml Max. Pressure: 700 Bar(Double)

FEATURES AND BENEFITS:

High strength alloy steel construction for increased durability
Compact, easy to carry
All pumps are two speed design for efficient operation
Internal safety valve for overload protection
* BP-280 is an all aluminum hand pump

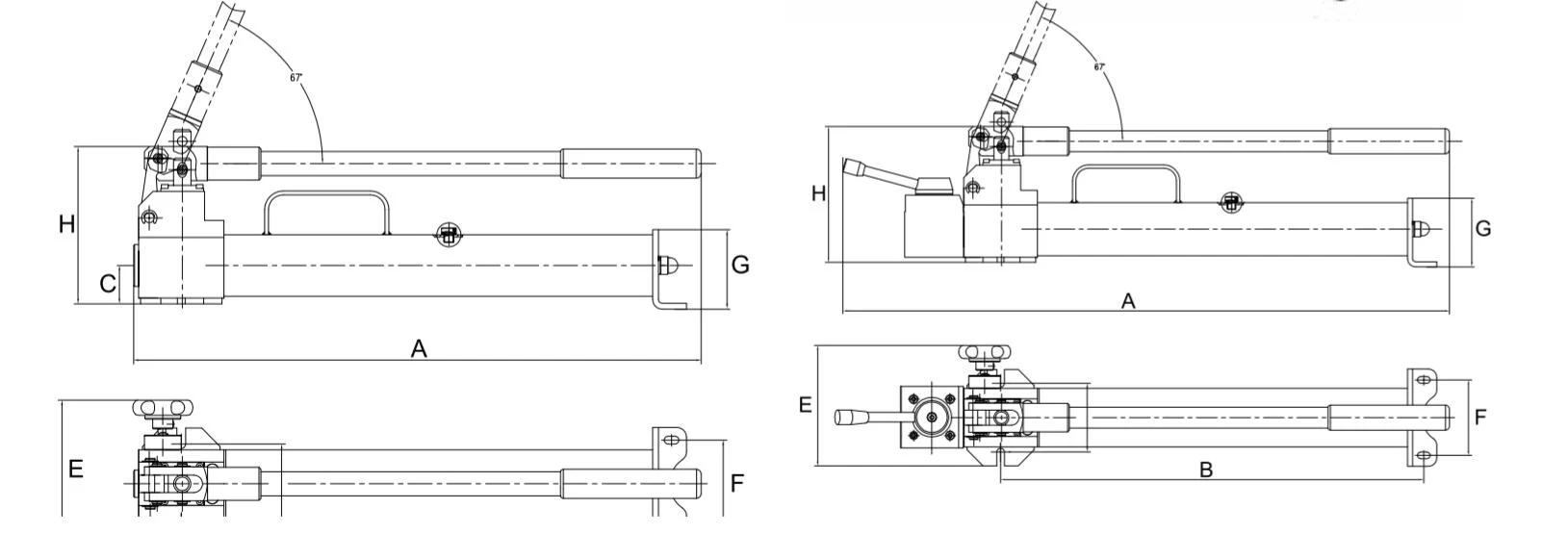

Design of bp-series-hand-pumps

bp-series-hand-pumps-double-acting

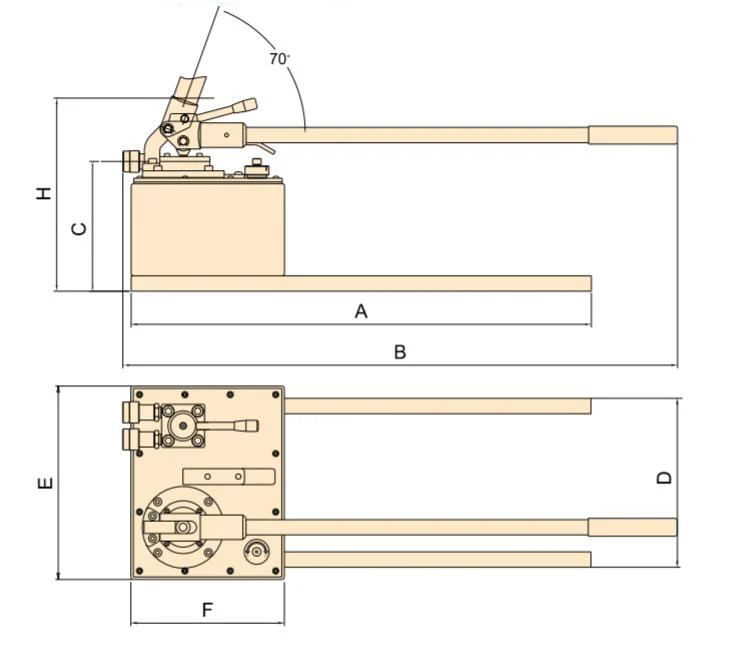

Design of bp-series-hand-pumps-double-acting

Series Comparison

Series Comparison

Series Comparison
MODEL	CYLINDER TYPE	USABLE OIL VOLUME	PRESSURE RATING		OIL DISPLACEMENT PER STROKE		HANDLE FORCE	PORT THREAD	A	B	C	D	E	F	G	H	WEIGHT
			1ST STAGE	2ND STAGE	1ST STAGE	2ND STAGE
			1ST STAGE	2ND STAGE	1ST STAGE	2ND STAGE
		CM³	BAR	BAR	CM³	CM³	KG		MM	MM	MM	MM	MM	MM	MM	MM	KG
BP-280 *	SINGLE ACTING	330.00	14.00	700.00	7.8	0.8	35.00	3/8-18NPT	375.00	290.00	/	80.00	110.00	67.00	／	143.00	2.20
BP-900A		750.00	25.00	700.00	33.0	3.3	49.00	3/8-18NPT	582.50	505.50	47.00	108.00	130.00	82.00	82.00	165.00	7.30
BP-2300A		2,300.00	25.00	700.00	33.0	3.3	49.00	3/8-18NPT	739.00	508.00	47.00	125.00	138.00	／	82.00	161.00	10.10
BP-4500		4,500.00	25.00	700.00	26.0	2.9	51.00	3/8-18NPT	580.00	608.00	163.00	275.00	315.00	250.00	-	267.00	22.50
BP-7500		7,500.00	25.00	700.00	125.0	5.8	51.00	3/8-18NPT	800.00	904.00	211.00	275.00	315.00	250.00	-	315.00	30.00
BPD-900A	DOUBLE ACTING	750.00	25.00	700.00	33.0	3.3	49.00	3/8-18NPT	582.50	505.50	29.00	108.00	108.00	82.00	82.00	165.00	8.80
BPD-2300A		2,300.00	25.00	700.00	33.0	3.3	49.00	3/8-18NPT	739.00	508.00	29.00	125.00	108.00	／	82.00	161.00	11.60
BPD-4500		4,500.00	25.00	700.00	26.0	2.9	51.00	3/8-18NPT	580.00	608.00	163.00	275.00	315.00	250.00	-	267.00	22.50
BPD-7500		7,500.00	25.00	700.00	125.0	5.8	51.00	3/8-18NPT	800.00	904.00	211.00	275.00	315.00	250.00	-	315.00	30.00
