Pancake Lock Nut Cylinders

Capacity: 60-1000T Max. Pressure: 700 Bar Load Return

BMLL-series is a design that features a threaded
piston rod and lock ring. When the lock ring is
screwed down and engaged with the cylinder body,
the load can be held mechanically for extended
periods. These cylinders are ideally suited to
bridge construction and maintenance and jacking
applications requiring safe extended load holding. All
BMLL-Series cylinders feature a hard chrome bore for
maximum corrosion resistance and a special coating
on the piston rod and lock ring to resist corrosion and
abrasion. All the cylinders are with tilt saddles and
an oil overflow port which restricts piston stroke is
standard on all models.

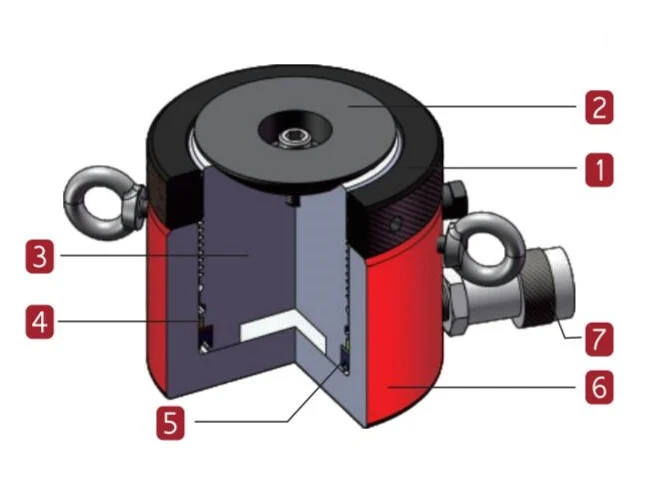

1. Mechanical locking nut design, long time load,
   more safe
2. QPQ treated piston reduces wear and corrosion
3. Industrial U-cup style seal prevents costly leaks
4. High strength composite bearing provides
   support for off center loads without damaging
   the cylinder walls
5. High strength alloy steel body is precision
   machined to reduce wear and features
   a baked enamel finish for durability and
   corrosion protection
6. Standard coupler provided with dust cover
