Single Acting Aluminum Lock Nut Cylinders

Capacity: 50-100T Max. Pressure: 700 Bar Hydraulic Return

The BMLA series single acting high tonnage construction cylinders is ideally suited for construction, civil
engineering, heavy fabrication and maintenance applications. All models are supplied with a tilting saddle
fitted as standard and have an overstroke restrictor port to prevent over extension of the piston. Standard
range models are featured in this catalogue, however additional capacities and stroke options are available on
request

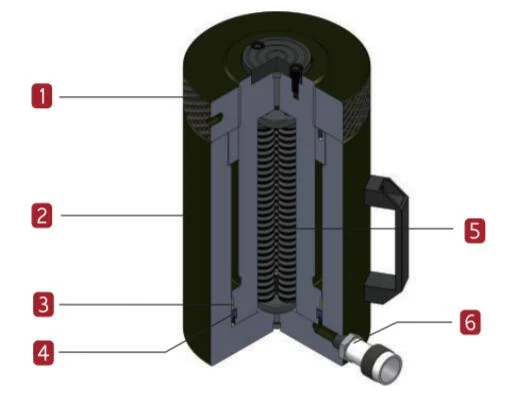

1. High strength mechanical lock ring
   provides positive load holding for extended
   periods
2. Aluminum alloy cylinder body anodized to
   protect against corrosion
3. High strength composite bearing provides
   support for off center loads without
   damaging the cylinder walls
4. Industrial U-cup style seal prevents costly
   leaks
5. Heavy-duty, straight pull return springs
   provide quick retraction times
6. Standard coupler provided with dust cover

• Light weight, easy to carry.
• High strength aluminum alloy treated to
  resist wear and corrosion.
• Heavy-duty, straight pull return springs
  provide quick retraction times.
• Composite bearing prevents metal to
  metal contact.
• Overflow port functions as a stroke limiter.
• Aluminum alloy lock nut for mechanical
  load holding.
• Handles included on all models.
• Rugged, BC-201A Female couplers with
  dust covers provided.
• Complies with ASME B30.1 standards.
